Architectural · A-X9PY5

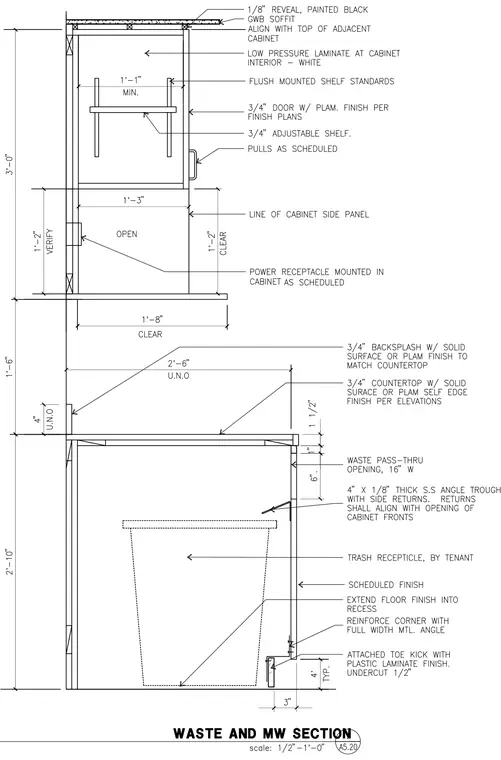

Millwork Section with Waste Pass-Thru and Trash Receptacle

About this detail

This millwork section details a base cabinet assembly featuring a three-quarter-inch countertop with solid surface or plastic laminate finish, a four-inch backsplash, and a waste pass-thru opening sixteen inches wide aligned with a four-inch by one-eighth-inch thick stainless steel angle trough with side returns. The base cabinet houses a trash receptacle by tenant, a scheduled finish, a floor finish extended into a recessed toe kick with a plastic laminate finish and a one-half-inch undercut, and full-width metal angle corner reinforcement. Above the countertop, an upper wall cabinet includes one-inch low-pressure laminate interior, flush-mounted shelf standards, three-quarter-inch adjustable shelves, a three-quarter-inch door with plastic laminate finish per finish plans, and scheduled pulls. A power receptacle is mounted inside the cabinet as scheduled. The assembly terminates at a gypsum wallboard soffit featuring a one-eighth-inch reveal painted black and aligned with the top of the adjacent cabinet.
