Architectural · A-X9PDE

Accessible Restroom Fixture Mounting Heights and Reach Ranges

About this detail

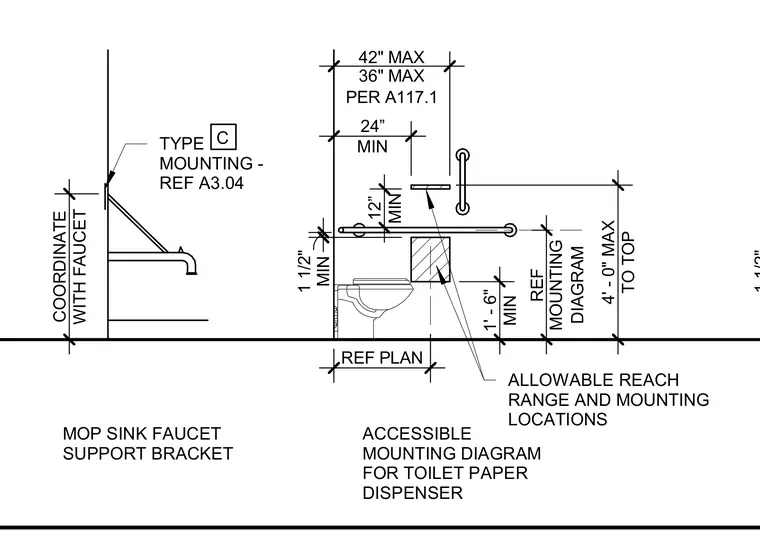

Accessible mounting heights and reach ranges are detailed for restroom fixtures including a mop sink faucet support bracket, toilet, grab bars, and toilet paper dispenser. Vertical and horizontal dimensions establish clearances such as a one and a half inch minimum spacing, twelve inch minimum, twenty-four inch minimum, thirty-six inch maximum, and forty-two inch maximum. The mop sink faucet coordinates with mounting type C referenced on sheet A3.04. Additional notes indicate allowable reach ranges and mounting locations referenced to the plan and compliant with A117.1 standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
