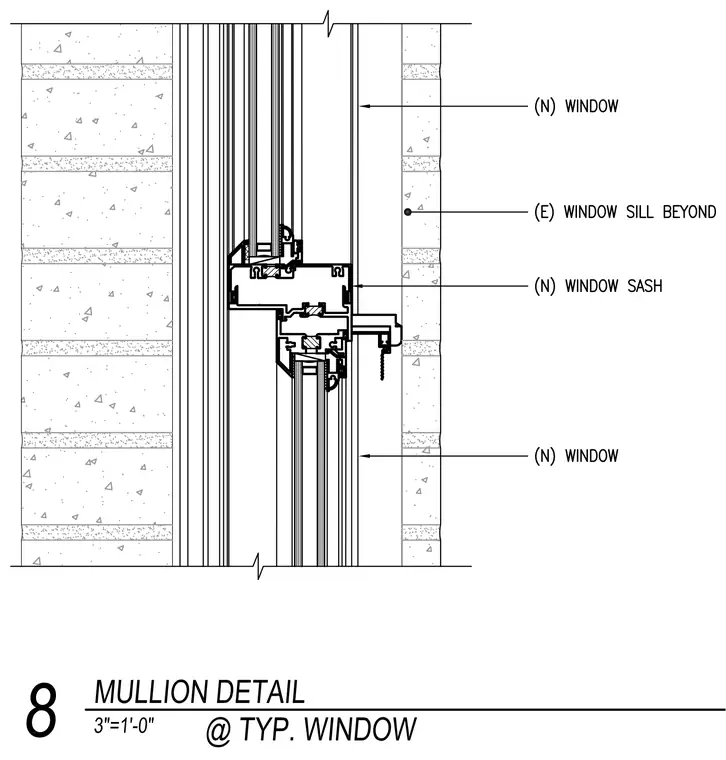

A window mullion assembly features new windows and a new window sash positioned adjacent to an existing window sill beyond. The section cuts vertically through the framing members, detailing the profiles of the mullion and window components set within the wall construction.
