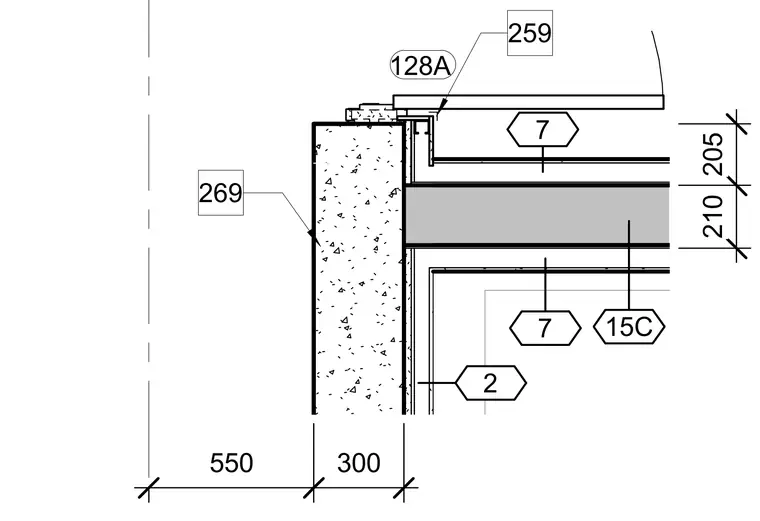

A concrete wall and a floor slab assembly intersect at this junction. Dimensional strings indicate offsets and thicknesses including 300 mm wall thickness and 550 mm clearance. Reference tags and numerical callouts coordinate the assembly with other construction drawings.
