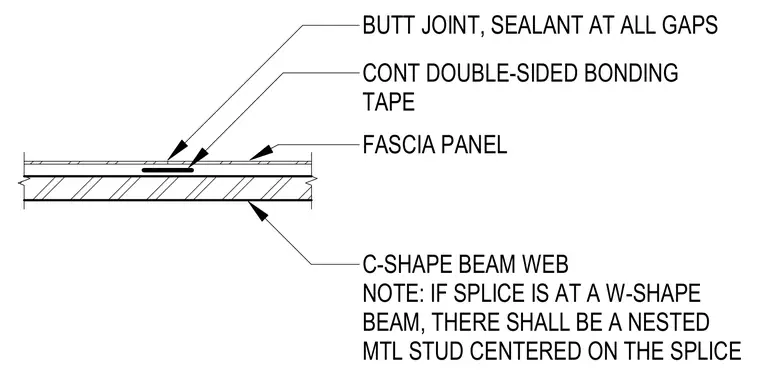

Fascia panels are joined at a butt joint over a C-shape beam web with continuous double-sided bonding tape, with sealant applied at all gaps. If the splice occurs at a W-shape beam, a nested metal stud must be centered on the splice.
BUTT JOINT, SEALANT AT ALL GAPS C-SHAPE BEAM WEB NOTE: IF SPLICE IS AT A W-SHAPE BEAM, THERE SHALL BE A NESTED MTL STUD CENTERED ON THE SPLICE CONT DOUBLE-SIDED BONDING TAPE FASCIA PANEL
