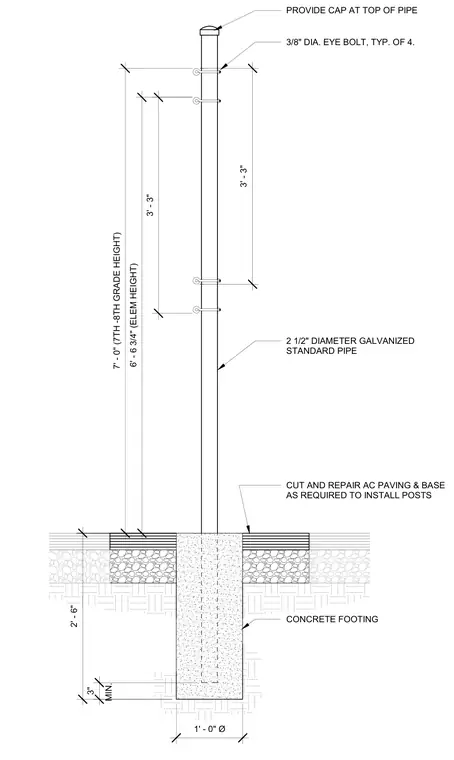

A volleyball post installation features a two-and-a-half-inch diameter galvanized standard pipe equipped with a protective top cap. Four three-eighths-inch diameter eye bolts are spaced vertically along the pipe to accommodate elementary, seventh, and eighth-grade net playing heights. The pipe is embedded into a one-foot diameter concrete footing with a minimum depth of two feet six inches. Asphalt concrete paving and base layers are cut and repaired as required around the perimeter of the installed post.
6' - 6 3/4" (ELEM HEIGHT) 2 1/2" DIAMETER GALVANIZED STANDARD PIPE PROVIDE CAP AT TOP OF PIPE 3' - 3" 7' - 0" (7TH -8TH GRADE HEIGHT) 3' - 3" 3/8" DIA. EYE BOLT, TYP. OF 4. CONCRETE FOOTING 2' - 6" MIN. 3" 1' - 0" Ø CUT AND REPAIR AC PAVING & BASE AS REQUIRED TO INSTALL POSTS
