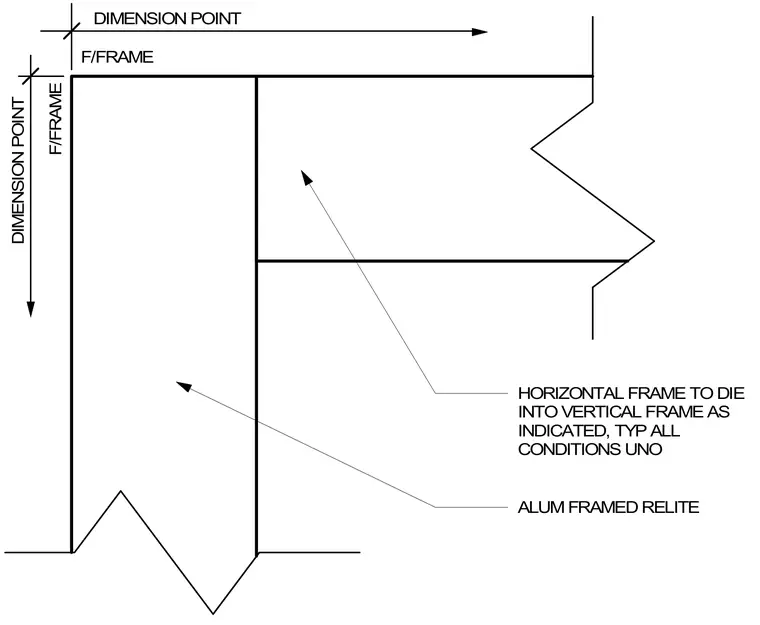

An aluminum framed relite features a horizontal frame member designed to die into the vertical frame member as indicated, typical for all conditions unless otherwise noted. Frame dimensions are measured from the frame face to the dimension points shown.
ALUM FRAMED RELITE HORIZONTAL FRAME TO DIE INTO VERTICAL FRAME AS INDICATED, TYP ALL CONDITIONS UNO DIMENSION POINT F/FRAME F/FRAME DIMENSION POINT
