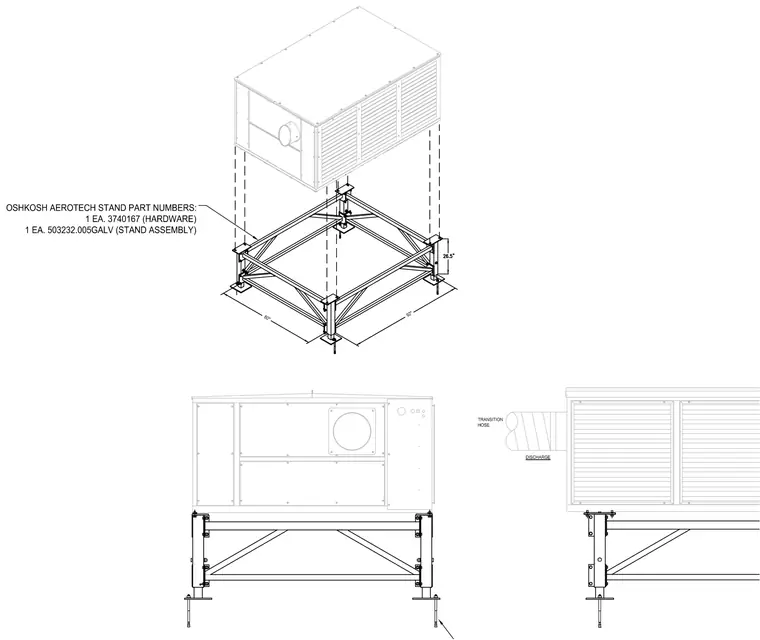

An Oshkosh Aerotech galvanized stand assembly is secured with hardware including one each of part numbers 3740167 and 503232.005GALV. The structural stand measures ninety-two inches by eighty inches with a height of twenty-six and a half inches. A discharge transition hose connects to the mechanical unit supported by the stand.
OSHKOSH AEROTECH STAND PART NUMBERS: 1 EA. 3740167 (HARDWARE) 1 EA. 503232.005GALV (STAND ASSEMBLY) 92" 80" DISCHARGE TRANSITION HOSE
