Architectural · A-X8ZB9

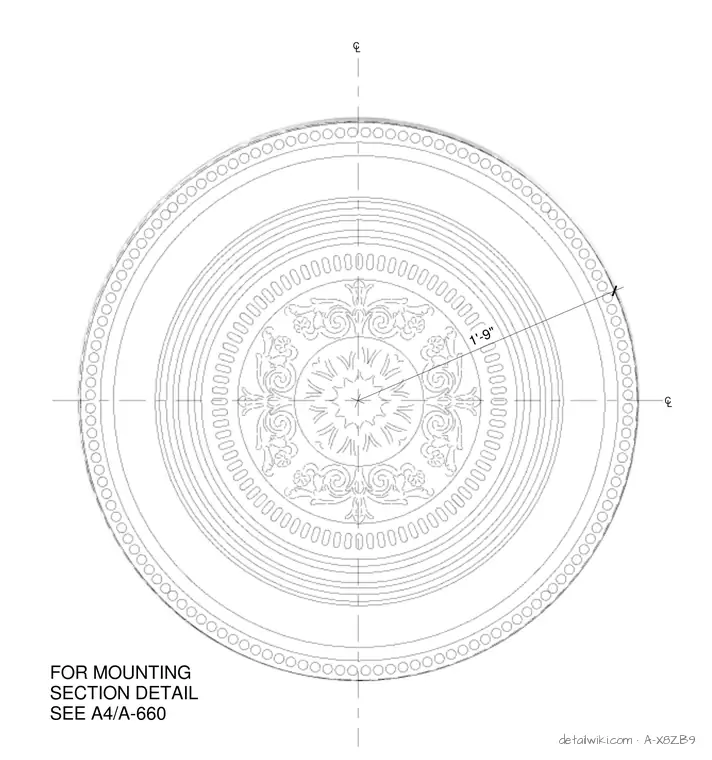

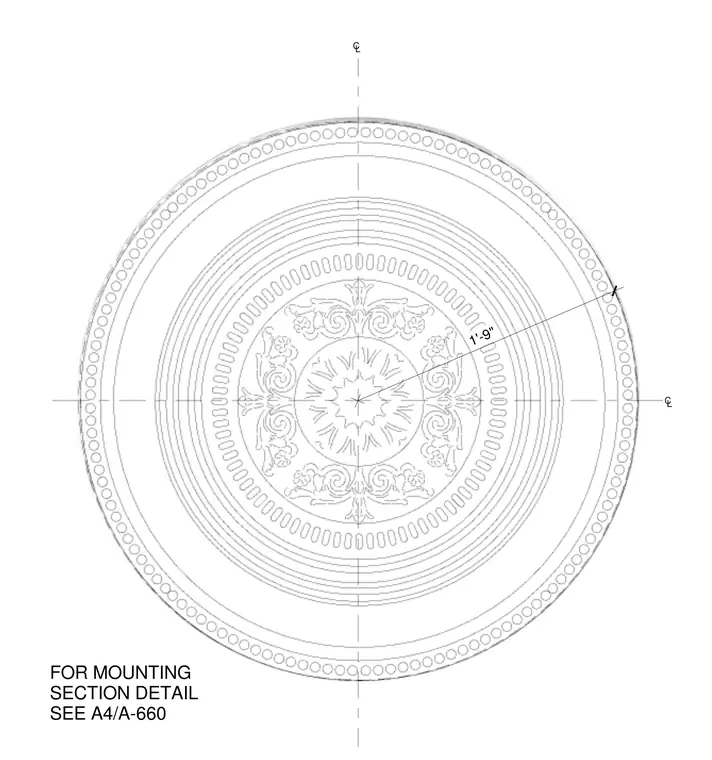

T205 Custom Medallion

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Millwork / Casework

Text on the drawing

CL CL 1'-9" FOR MOUNTING SECTION DETAIL SEE A4/A-660

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
