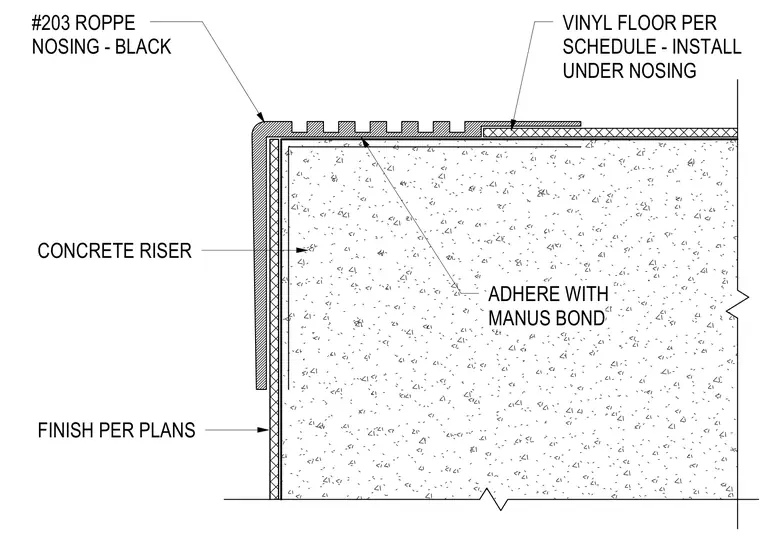

A number 203 Roppe black vinyl stair nosing wraps the exterior corner of a concrete stair riser. Vinyl flooring specified per schedule extends under the nosing. Both finish materials adhere to the concrete substrate using Manus Bond adhesive.
#203 ROPPE NOSING - BLACK VINYL FLOOR PER SCHEDULE - INSTALL UNDER NOSING ADHERE WITH MANUS BOND FINISH PER PLANS CONCRETE RISER
