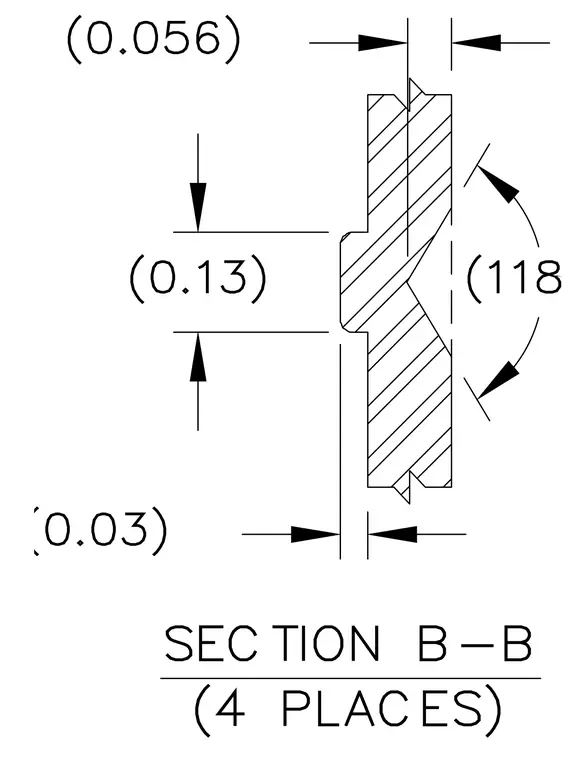

Section view detailing a machined component profile with a point angle of 118 degrees and specific linear dimensions including 0.056, 0.13, and 0.03 inches. The drawing indicates four places for this section profile. Dimensions locate the central protrusion and overall profile geometry.
