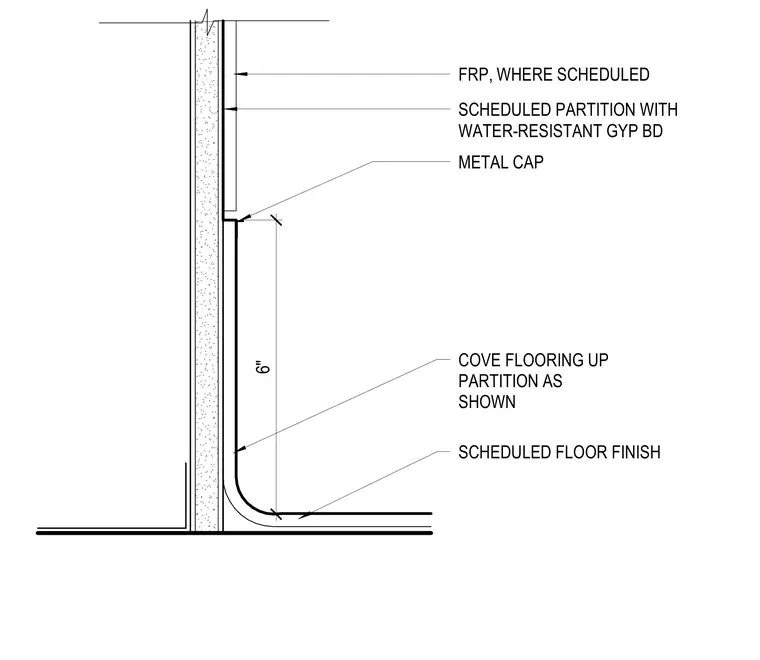

This interior detail shows a resilient flooring material coved up six inches against a scheduled partition finished with water-resistant gypsum board. A metal cap finishes the top edge of the coved flooring, located below scheduled fiber-reinforced plastic wall panels where specified. The assembly meets the scheduled floor finish with a smooth coved radius.
SCHEDULED PARTITION WITH WATER-RESISTANT GYP BD SCHEDULED FLOOR FINISH COVE FLOORING UP PARTITION AS SHOWN FRP, WHERE SCHEDULED METAL CAP 6"
