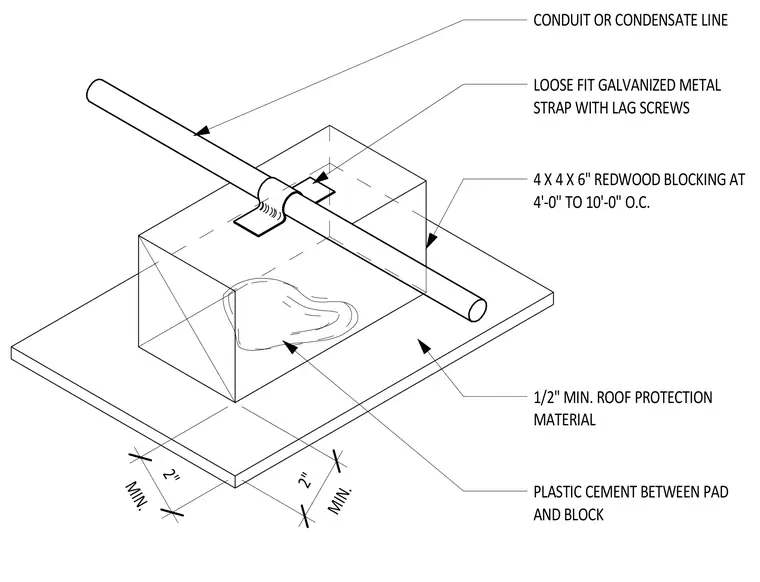

A conduit or condensate line is secured over a redwood blocking assembly using a loose-fit galvanized metal strap with lag screws. The four-by-four-by-six-inch redwood block is spaced at four to ten feet on center and bedded in plastic cement over a half-inch minimum roof protection material. The protective pad extends a minimum of two inches beyond the wood blocking on all sides.
MIN. 2" MIN. 2" CONDUIT OR CONDENSATE LINE LOOSE FIT GALVANIZED METAL STRAP WITH LAG SCREWS 4 X 4 X 6" REDWOOD BLOCKING AT 4'-0" TO 10'-0" O.C. 1/2" MIN. ROOF PROTECTION MATERIAL PLASTIC CEMENT BETWEEN PAD AND BLOCK
