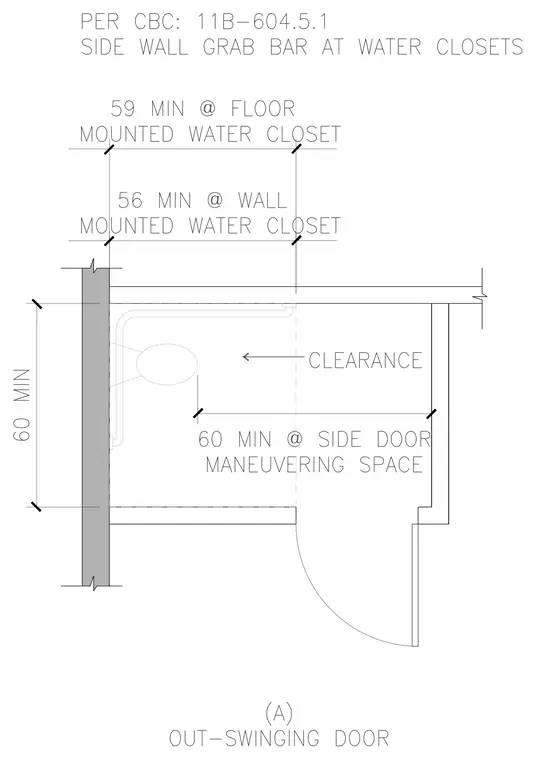

An accessible water closet stall features a side wall grab bar complying with California Building Code section 11B-604.5.1. The layout indicates a sixty inch minimum dimension from the rear wall, fifty-nine inches minimum at floor mounted water closets, and fifty-six inches minimum at wall mounted water closets. The side door maneuvering space requires a sixty inch minimum clearance.
