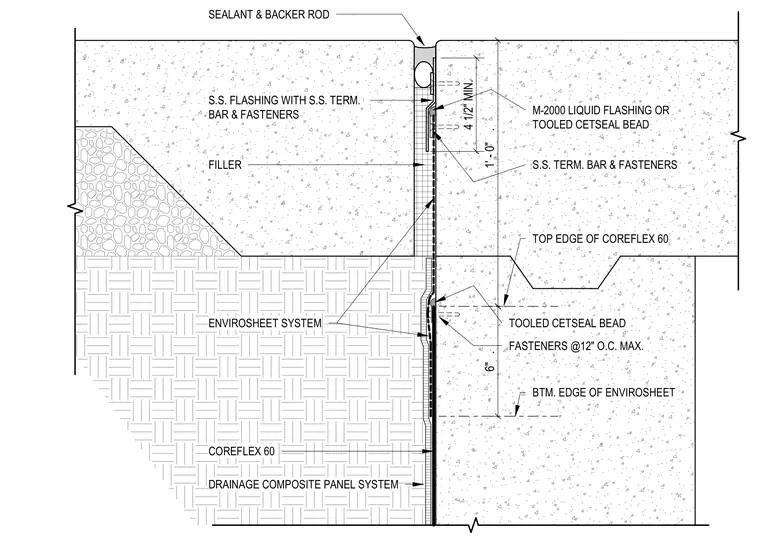

An ejector pit edge waterproofing assembly features a Coreflex 60 drainage composite panel system paired with an Enviroheet system. The vertical joint is sealed with sealant and a backer rod over a filler material. Stainless steel flashing with a stainless steel termination bar and fasteners secures the upper edge. Liquid flashing or a tooled Cetseal bead provides additional weatherproofing at transitions.
COREFLEX 60 DRAINAGE COMPOSITE PANEL SYSTEM TOOLED CETSEAL BEAD FASTENERS @12" O.C. MAX. SEALANT & BACKER ROD S.S. FLASHING WITH S.S. TERM. BAR & FASTENERS S.S. TERM. BAR & FASTENERS M-2000 LIQUID FLASHING OR TOOLED CETSEAL BEAD ENVIROSHEET SYSTEM FILLER 4 1/2" MIN. TOP EDGE OF COREFLEX 60 1' - 0" . BTM. EDGE OF ENVIROSHEET 6" .
