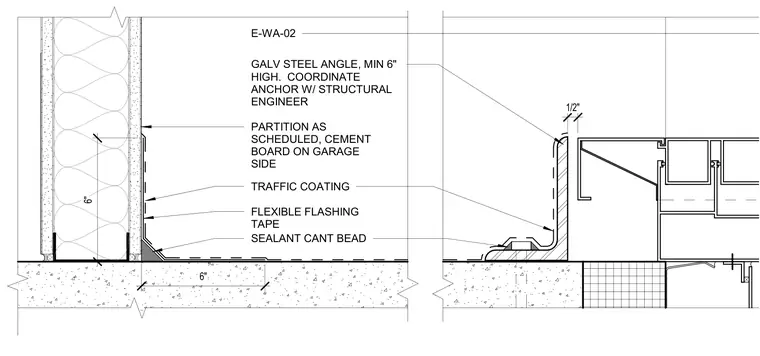

A six-inch partition scheduled with cement board on the garage side meets the floor slab where traffic coating is applied. Flexible flashing tape seals the transition, reinforced by a sealant cant bead. A galvanized steel angle, minimum six inches high, anchors at the slab edge with the anchor coordinated with the structural engineer.
6" 6" PARTITION AS SCHEDULED, CEMENT BOARD ON GARAGE SIDE TRAFFIC COATING FLEXIBLE FLASHING TAPE SEALANT CANT BEAD GALV STEEL ANGLE, MIN 6" HIGH. COORDINATE ANCHOR W/ STRUCTURAL ENGINEER 1/2" E-WA-02
