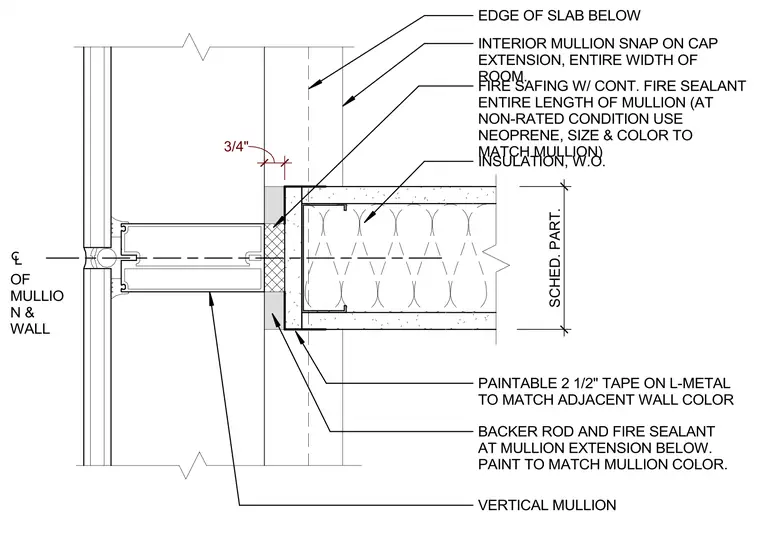

A rated partition abuts a vertical mullion with an interior snap-on cap extension spanning the entire width of the room. Fire safing with continuous fire sealant runs the entire length of the mullion, utilizing neoprene for non-rated conditions sized to match the mullion color. L-metal angles at the partition edges receive paintable two and one-half inch tape matching the adjacent wall color. Backer rod and fire sealant seal the joint at the mullion extension below, painted to match the mullion color.
PAINTABLE 2 1/2" TAPE ON L-METAL TO MATCH ADJACENT WALL COLOR INSULATION, W.O. VERTICAL MULLION BACKER ROD AND FIRE SEALANT AT MULLION EXTENSION BELOW. PAINT TO MATCH MULLION COLOR. INTERIOR MULLION SNAP ON CAP EXTENSION, ENTIRE WIDTH OF ROOM. EDGE OF SLAB BELOW FIRE SAFING W/ CONT. FIRE SEALANT ENTIRE LENGTH OF MULLION (AT NON-RATED CONDITION USE NEOPRENE, SIZE & COLOR TO MATCH MULLION) OF MULLIO N & WALL SCHED. PART. 3/4"
