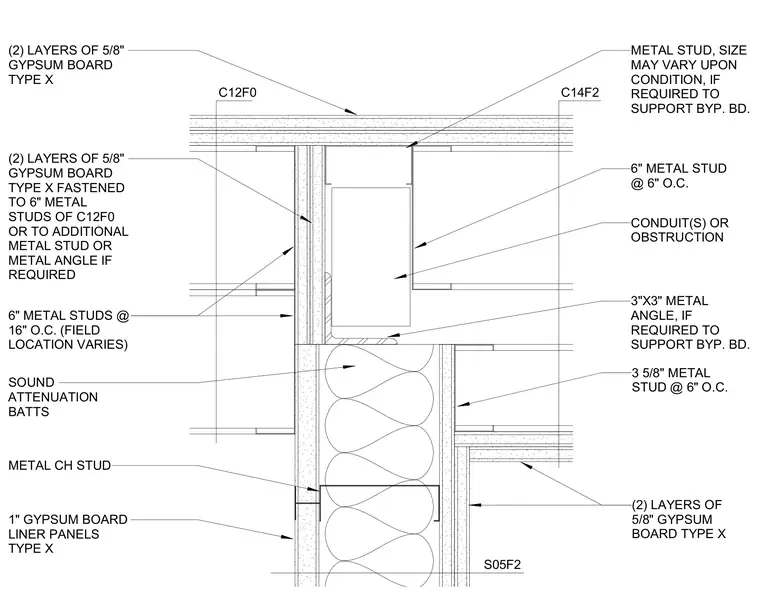

Cold-formed metal stud partition walls intersect with varying stud sizes spaced at six inches or sixteen inches on center. Two layers of five-eighths-inch gypsum board Type X fasten to the metal studs on both sides, with additional layers applied where required. Sound attenuation batts fill the interior cavity of the wall assembly for acoustic control. A three-by-three-inch metal angle provides supplementary support for bypass board conditions as field locations dictate, accommodating potential conduits or obstructions within the framing cavity. One-inch gypsum board liner panels Type X and metal CH studs complete the shaft wall or partition assembly.
METAL STUD, SIZE MAY VARY UPON CONDITION, IF REQUIRED TO SUPPORT BYP. BD. 6" METAL STUD @ 6" O.C. 3 5/8" METAL STUD @ 6" O.C. (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X 6" METAL STUDS @ 16" O.C. (FIELD LOCATION VARIES) SOUND ATTENUATION BATTS METAL CH STUD 1" GYPSUM BOARD LINER PANELS TYPE X CONDUIT(S) OR OBSTRUCTION 3"X3" METAL ANGLE, IF REQUIRED TO SUPPORT BYP. BD. (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X FASTENED TO 6" METAL STUDS OF C12F0 OR TO ADDITIONAL METAL STUD OR METAL ANGLE IF REQUIRED S05F2 C14F2 C12F0
