A head-of-wall connection for cold-formed steel framing beneath a concrete slab. A fourteen-gauge fast top clip connects the framing, utilizing FTC3 clips for three-and-five-eighths-inch studs or FTC5 clips for six-inch studs. Two quarter-inch-diameter Hilti HUS-EZ screw anchors at two-and-a-quarter-inch center-to-center spacing secure the FTC3 clips, while two three-eighths-inch-diameter Hilti HUS-EZ screw anchors at three-and-a-half-inch center-to-center spacing secure the FTC5 clips. Two deflection screws fasten the clip at FTC3 locations, and three deflection screws fasten the clip at FTC5 locations. A one-inch minimum to one-and-a-quarter-inch maximum gap is maintained between the top of the stud and the underside of the concrete.

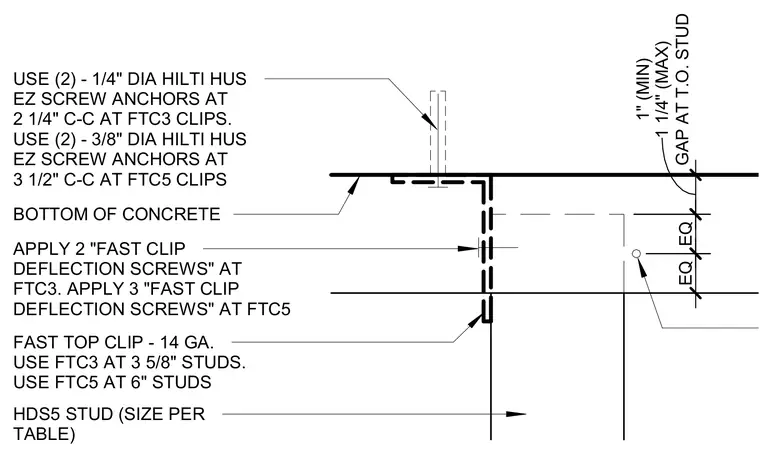

APPLY 2 "FAST CLIP DEFLECTION SCREWS" AT FTC3. APPLY 3 "FAST CLIP DEFLECTION SCREWS" AT FTC5 FAST TOP CLIP - 14 GA. USE FTC3 AT 3 5/8" STUDS. USE FTC5 AT 6" STUDS BOTTOM OF CONCRETE EQ EQ GAP AT T.O. STUD 1" (MIN) 1 1/4" (MAX) USE (2) - 1/4" DIA HILTI HUS EZ SCREW ANCHORS AT 2 1/4" C-C AT FTC3 CLIPS. USE (2) - 3/8" DIA HILTI HUS EZ SCREW ANCHORS AT 3 1/2" C-C AT FTC5 CLIPS HDS5 STUD (SIZE PER TABLE)
