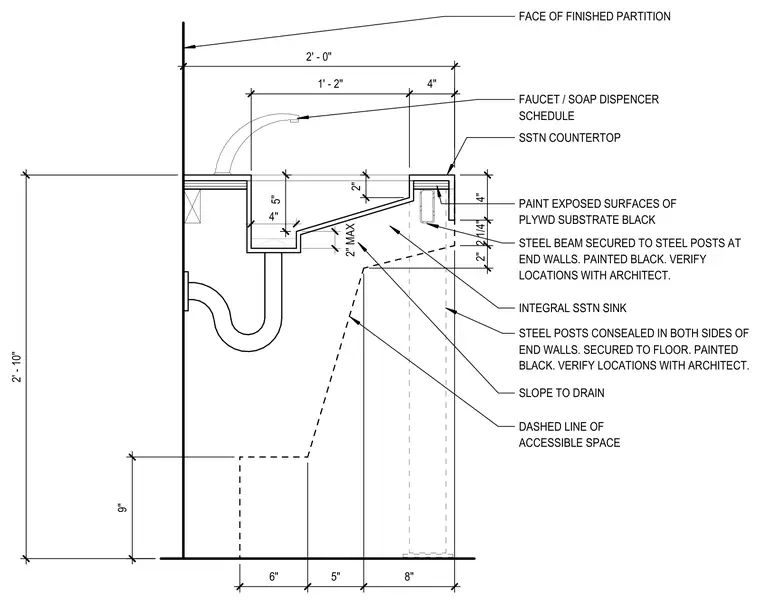

A solid surface countertop features an integrated sink basin sloping toward the drain, with a plywood substrate finished in black paint on exposed surfaces. The assembly is supported by a steel beam secured to structural steel posts concealed within the end walls and anchored to the floor. Dimensions provide a two-foot-ten-inch counter height and maintain clearance for the dashed accessible space below. Faucet and soap dispenser placements follow the designated schedule.
SSTN COUNTERTOP INTEGRAL SSTN SINK FACE OF FINISHED PARTITION DASHED LINE OF ACCESSIBLE SPACE STEEL BEAM SECURED TO STEEL POSTS AT END WALLS. PAINTED BLACK. VERIFY LOCATIONS WITH ARCHITECT. 2 " 2 1 / 4 " 4 " 2 ' - 0 " 6 " 5 " 8 " 9 " 1 ' - 2 " 4 " PAINT EXPOSED SURFACES OF PLYWD SUBSTRATE BLACK 5 " 2 " 2 ' - 1 0 " FAUCET / SOAP DISPENCER SCHEDULE STEEL POSTS CONSEALED IN BOTH SIDES OF END WALLS. SECURED TO FLOOR. PAINTED BLACK. VERIFY LOCATIONS WITH ARCHITECT. 4 " SLOPE TO DRAIN 2 " M A X
