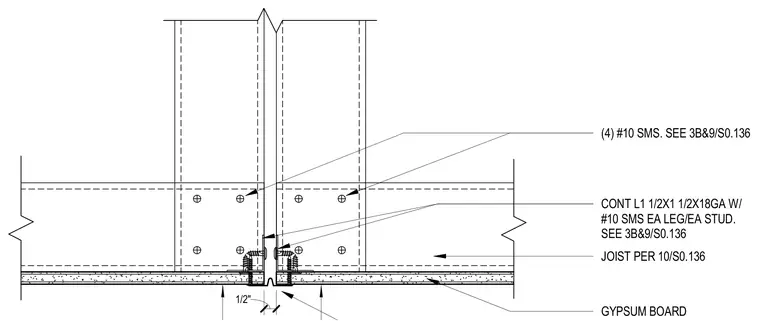

Half-inch gypsum board is secured to ceiling joists sized per structural drawings with four number ten sheet metal screws. A continuous 1 1/2 by 1 1/2 inch 18-gauge angle is fastened to each leg and each stud using number ten sheet metal screws.
1/2" GYPSUM BOARD JOIST PER 10/S0.136 (4) #10 SMS. SEE 3B&9/S0.136 CONT L1 1/2X1 1/2X18GA W/ #10 SMS EA LEG/EA STUD. SEE 3B&9/S0.136
