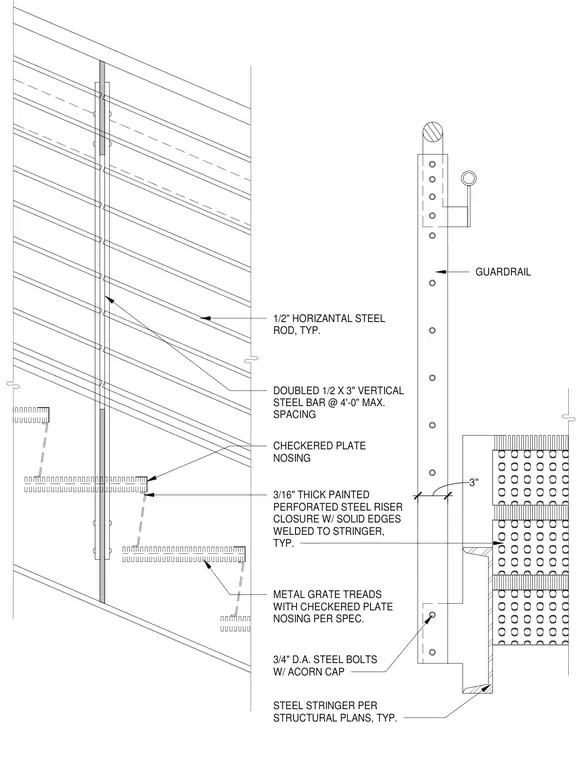

Metal grate treads with checkered plate nosing rest on three-inch steel stringers sized per structural plans. A three-sixteenth-inch thick painted perforated steel riser closure with solid edges is welded to the stringer. The guardrail assembly incorporates doubled one-half by three-inch vertical steel bars at four-foot maximum spacing, connected with three-quarter-inch diameter steel bolts with acorn caps. One-half-inch horizontal steel rods pass through the vertical bars to complete the railing infill.
METAL GRATE TREADS WITH CHECKERED PLATE NOSING PER SPEC. 3/16" THICK PAINTED PERFORATED STEEL RISER CLOSURE W/ SOLID EDGES WELDED TO STRINGER, TYP. CHECKERED PLATE NOSING DOUBLED 1/2 X 3" VERTICAL STEEL BAR @ 4'-0" MAX. SPACING 1/2" HORIZANTAL STEEL ROD, TYP. 3" STEEL STRINGER PER STRUCTURAL PLANS, TYP. 3/4" D.A. STEEL BOLTS W/ ACORN CAP GUARDRAIL
