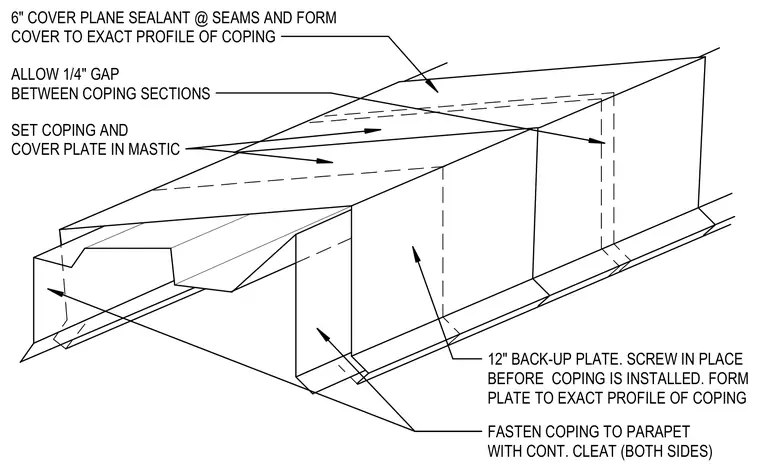

Adjacent metal coping sections are separated by a one-quarter-inch gap and joined over a twelve-inch backup plate that is screwed into place before the coping is installed. Both the coping and backup plate are set in mastic, with continuous cleats fastening the coping to the parapet on both sides. A six-inch cover plate sealed with plane sealant at the seams is formed to match the exact profile of the coping.
6" COVER PLANE SEALANT @ SEAMS AND FORM COVER TO EXACT PROFILE OF COPING SET COPING AND COVER PLATE IN MASTIC ALLOW 1/4" GAP BETWEEN COPING SECTIONS 12" BACK-UP PLATE. SCREW IN PLACE BEFORE COPING IS INSTALLED. FORM PLATE TO EXACT PROFILE OF COPING FASTEN COPING TO PARAPET WITH CONT. CLEAT (BOTH SIDES)
