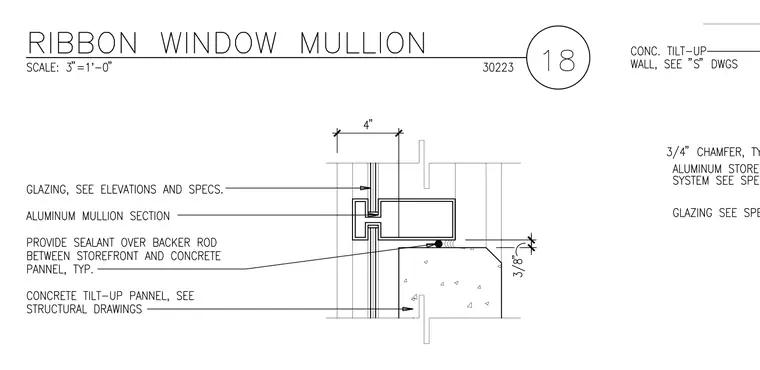

An aluminum storefront ribbon window mullion section is anchored adjacent to a concrete tilt-up panel featuring a 3/4 inch typical chamfer. Sealant over a backer rod bridges the joint between the storefront frame and the concrete panel. Glazing is installed per elevations and specifications, positioned four inches from the reference line. The concrete tilt-up panel is constructed per structural drawings.
