A 3-inch by 3-inch by 1/4-inch steel tube structural support is sandwiched between full-height steel studs forming a box post. The steel tube is secured to the stud channels on each side using three-eighths-inch bolts. The box post framing members are fastened together with number 8 Teks screws at 6 inches on center. The surrounding wall framing is finished with a water-resistant tile backer board, TCA W245 crack isolator membrane, thin-set mortar, and ceramic wall tile. A 1/2-inch caulked joint seals the junction at the tile face.

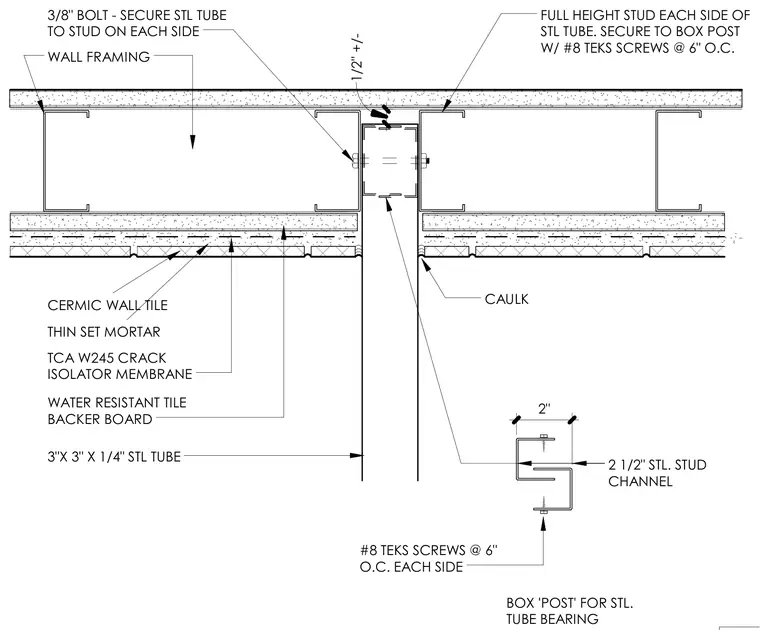

TCA W245 CRACK ISOLATOR MEMBRANE WATER RESISTANT TILE BACKER BOARD THIN SET MORTAR CERMIC WALL TILE 3"X 3" X 1/4" STL TUBE 1/2" +/- CAULK 2" FULL HEIGHT STUD EACH SIDE OF STL TUBE. SECURE TO BOX POST W/ #8 TEKS SCREWS @ 6" O.C. WALL FRAMING 3/8" BOLT - SECURE STL TUBE TO STUD ON EACH SIDE #8 TEKS SCREWS @ 6" O.C. EACH SIDE BOX 'POST' FOR STL. TUBE BEARING 2 1/2" STL. STUD CHANNEL
