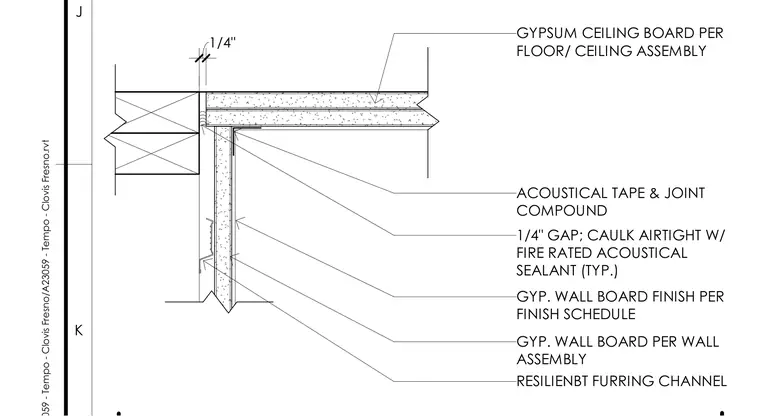

Gypsum ceiling board terminates at a one-quarter-inch gap from the adjacent wall, sealed airtight with fire-rated acoustical sealant. The wall framing utilizes resilient furring channels behind gypsum wall board finished per the finish schedule. Acoustical tape and joint compound finish the internal corner junction between the wall and ceiling surfaces.
1/4" GYPSUM CEILING BOARD PER FLOOR/ CEILING ASSEMBLY 1/4" GAP; CAULK AIRTIGHT W/ FIRE RATED ACOUSTICAL SEALANT (TYP.) GYP. WALL BOARD FINISH PER FINISH SCHEDULE GYP. WALL BOARD PER WALL ASSEMBLY RESILIENBT FURRING CHANNEL ACOUSTICAL TAPE & JOINT COMPOUND J K
