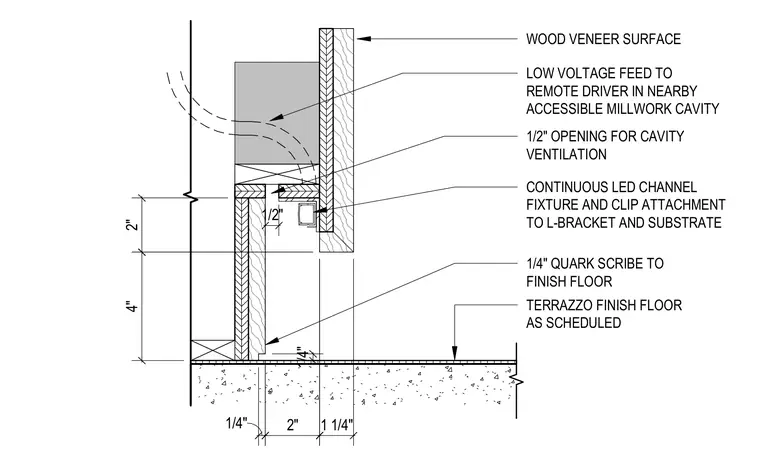

A wood veneer surface clads the reception desk base, terminating above a terrazzo finish floor with a one-quarter-inch quark scribe. A continuous LED channel fixture attaches with a clip to an L-bracket and substrate behind the face panel. A one-half-inch opening provides cavity ventilation above the recessed light channel. A low voltage feed routes through the framing cavity to a remote driver located in a nearby accessible millwork cavity.
CONTINUOUS LED CHANNEL FIXTURE AND CLIP ATTACHMENT TO L-BRACKET AND SUBSTRATE 1/4" 1/4" 2" 1 1/4" 4" 2" WOOD VENEER SURFACE 1/4" QUARK SCRIBE TO FINISH FLOOR TERRAZZO FINISH FLOOR AS SCHEDULED LOW VOLTAGE FEED TO REMOTE DRIVER IN NEARBY ACCESSIBLE MILLWORK CAVITY 1/2" 1/2" OPENING FOR CAVITY VENTILATION
