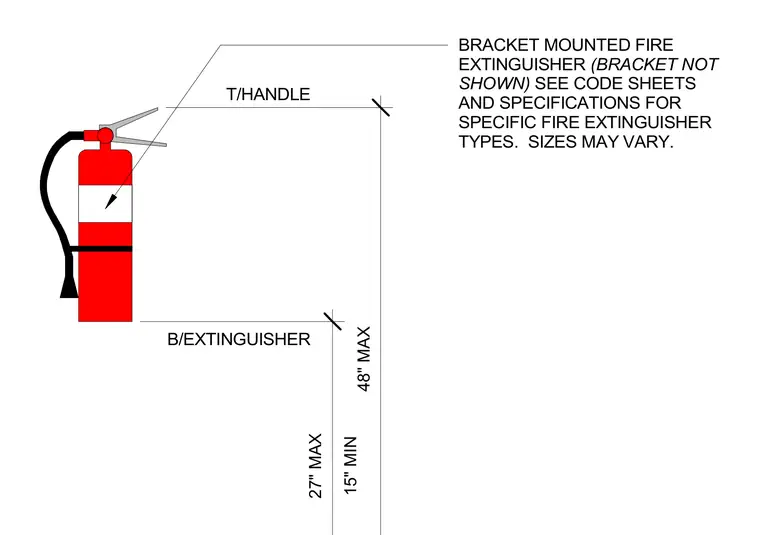

The fire extinguisher is mounted to a wall bracket at specific vertical code-compliant heights. The top of the handle is positioned at a maximum height above the finished floor, while the bottom of the extinguisher maintains a minimum and maximum clearance. Specific extinguisher types and sizes vary per project specifications and code requirements.
B/EXTINGUISHER BRACKET MOUNTED FIRE EXTINGUISHER (BRACKET NOT SHOWN) SEE CODE SHEETS AND SPECIFICATIONS FOR SPECIFIC FIRE EXTINGUISHER TYPES. SIZES MAY VARY. 15" MIN 27" MAX 48" MAX T/HANDLE
