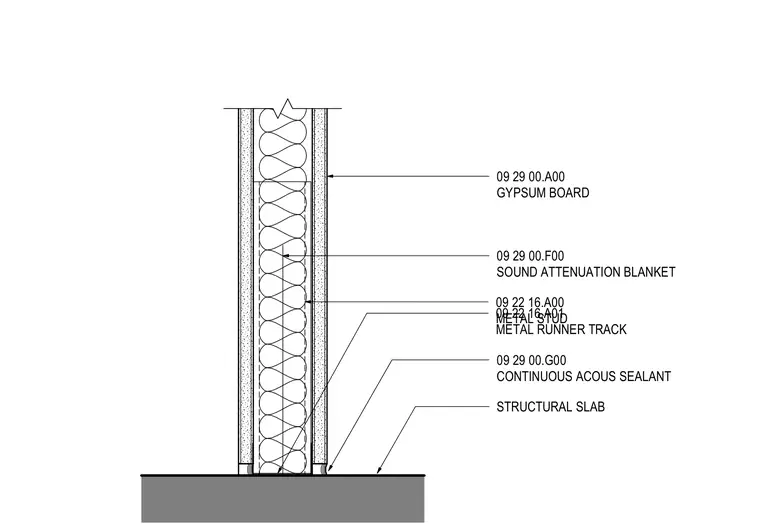

A metal runner track secures the top of the cold-formed steel metal studs against the underside of the structural slab. Layers of gypsum board are screw-attached to both faces of the metal studs. A sound attenuation blanket fills the stud cavity for acoustic performance. Continuous acoustic sealant beads seal the joint between the gypsum board layers and the structural slab.
09 22 16.A01 METAL RUNNER TRACK 09 22 16.A00 METAL STUD 09 29 00.F00 SOUND ATTENUATION BLANKET 09 29 00.A00 GYPSUM BOARD 09 29 00.G00 CONTINUOUS ACOUS SEALANT STRUCTURAL SLAB
