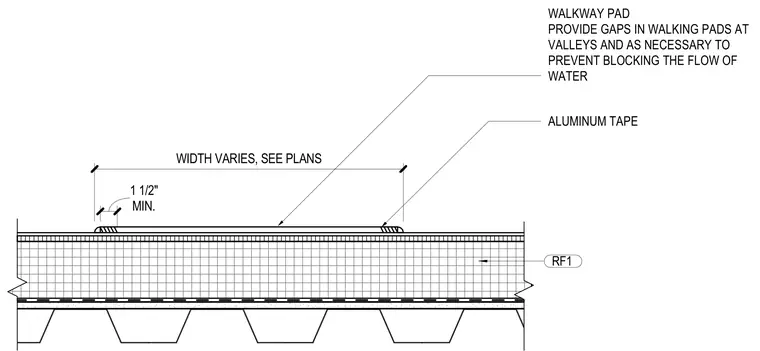

A walkway pad is installed over the roof assembly with a variable width per plans and a minimum width of one and one-half inches. Aluminum tape secures the edges of the walkway pad. Gaps are provided in walking pads at valleys and as necessary to prevent blocking the flow of water.
MIN. 1 1/2" WIDTH VARIES, SEE PLANS WALKWAY PAD PROVIDE GAPS IN WALKING PADS AT VALLEYS AND AS NECESSARY TO PREVENT BLOCKING THE FLOW OF WATER ALUMINUM TAPE RF1
