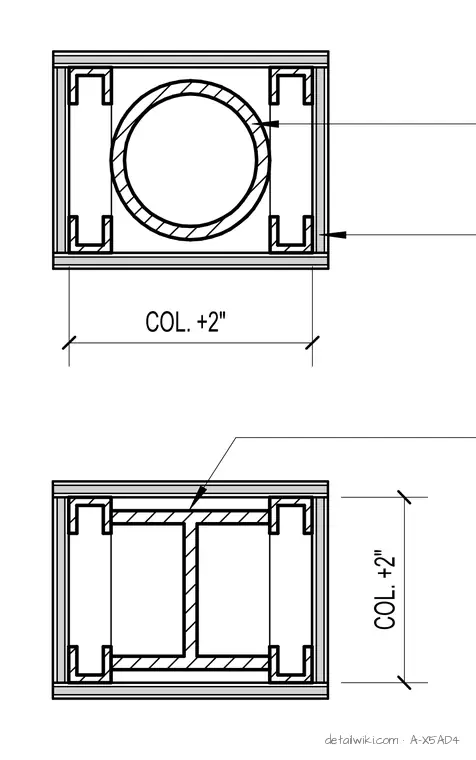

Plan view configuration for enclosing structural steel columns within a rectangular framing system. The top view features a circular hollow structural section column; the bottom view features a wide-flange column profile. Both assemblies are centered within a rectangular perimeter frame, with dimensions noted as column plus two inches for clearance on all sides.
COL. +2" COL. +2"
