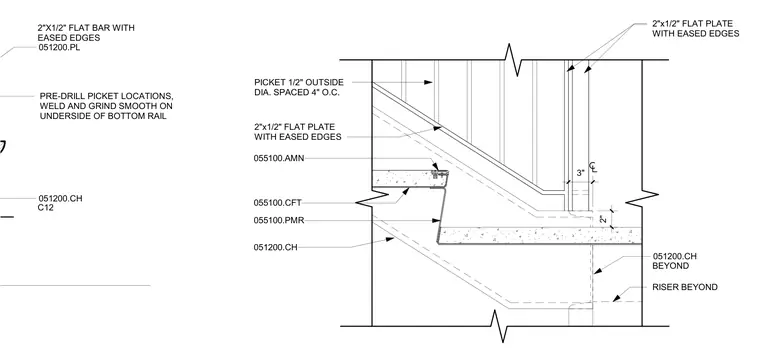

An intermediate stair landing meets the base of a stair run with a C12 steel channel stringer extending below. The stair guardrail incorporates a two-inch by one-half-inch flat bar with eased edges, pre-drilled for one-half-inch outside diameter pickets spaced at four inches on center. Pickets are welded to the bottom rail with welds ground smooth on the underside. Additional two-inch by one-half-inch flat plates are positioned at the landing edge and beyond.
C12 2"X1/2" FLAT BAR WITH EASED EDGES 051200.PL 051200.CH PRE-DRILL PICKET LOCATIONS, WELD AND GRIND SMOOTH ON UNDERSIDE OF BOTTOM RAIL 3" 2"x1/2" FLAT PLATE WITH EASED EDGES 051200.CH 051200.CH BEYOND 2" 2"x1/2" FLAT PLATE WITH EASED EDGES PICKET 1/2" OUTSIDE DIA. SPACED 4" O.C. RISER BEYOND 055100.PMR 055100.CFT 055100.AMN
