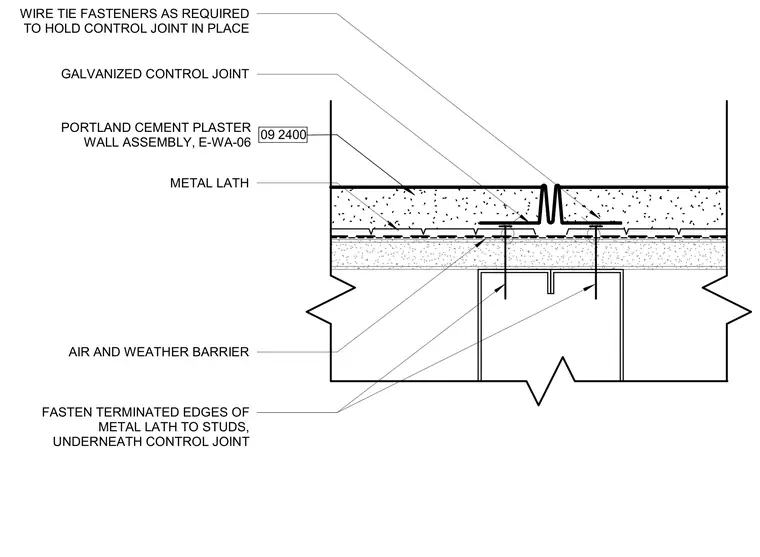

A Portland cement plaster wall assembly incorporates a galvanized control joint. An air and weather barrier is applied behind the metal lath, which is secured to the framing studs with fasteners. Terminated edges of the metal lath are fastened to the studs underneath the control joint. Wire tie fasteners are used as required to hold the control joint in place.
09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 GALVANIZED CONTROL JOINT WIRE TIE FASTENERS AS REQUIRED TO HOLD CONTROL JOINT IN PLACE AIR AND WEATHER BARRIER FASTEN TERMINATED EDGES OF METAL LATH TO STUDS, UNDERNEATH CONTROL JOINT METAL LATH
