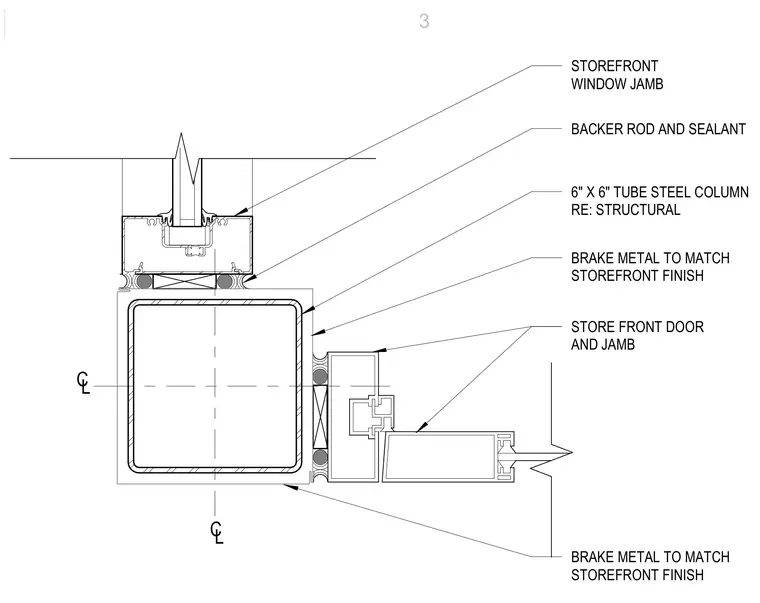

A storefront window jamb and storefront door and jamb meet a 6x6 tube steel column. Brake metal matching the storefront finish wraps the HSS column. Backer rod and sealant seal the joints between the aluminum framing members and the steel column assembly.
STOREFRONT WINDOW JAMB BACKER ROD AND SEALANT 6" X 6" TUBE STEEL COLUMN RE: STRUCTURAL BRAKE METAL TO MATCH STOREFRONT FINISH STORE FRONT DOOR AND JAMB CL CL BRAKE METAL TO MATCH STOREFRONT FINISH 3
