Architectural · A-X4EYY

Lower Wall Attachment Standard Top Deck

Materials

Concrete Steel Timber / Wood Masonry / CMU Glass / Glazing Metal (misc.)

Elements

Beams Walls Decks Anchors / Embeds Connections / Plates

Connections

Bolted Connection

About this detail

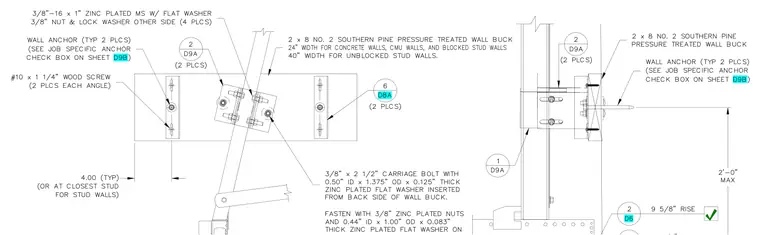

A lower wall attachment utilizes a 2x8 No. 2 Southern Pine pressure-treated wall buck, spanning 24 inches in width for concrete, masonry, and blocked stud walls, or 40 inches for unblocked stud walls. The assembly is anchored using 3/8-inch by 2-1/2-inch zinc-plated carriage bolts with flat washers inserted from the back side of the wall buck, fastened with corresponding zinc-plated nuts and flat washers. Additional attachment is provided via 3/8-inch by 1-inch zinc-plated machine screws with flat, lock washers, and nuts secured through mounting angles. Number 10 by 1-1/4-inch wood screws are specified at two places for each angle connection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
