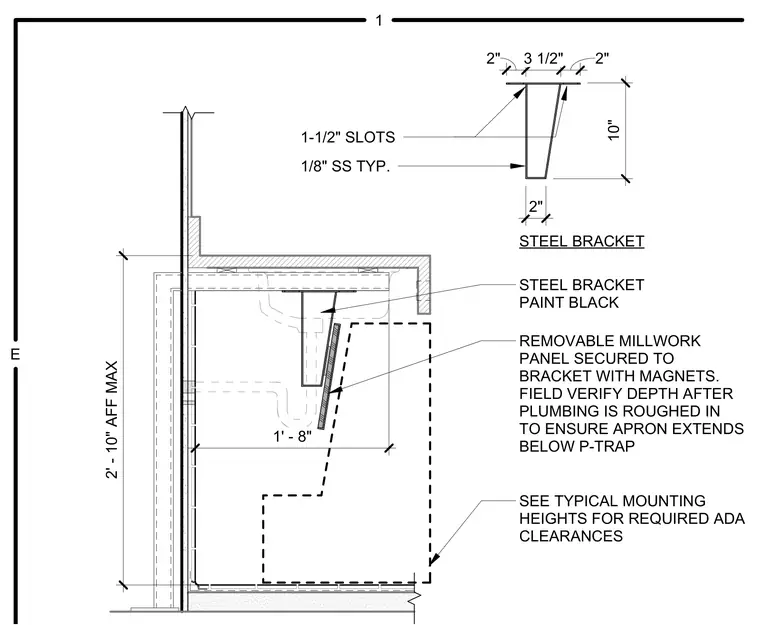

A painted black steel bracket measuring ten inches high with one-eighth inch stainless steel and one-and-one-half inch slots supports the vanity structure. A removable millwork panel is secured to the bracket with magnets and positioned to extend below the plumbing p-trap. The overall installation maintains a maximum two feet ten inches above finished floor height, with dimensions field verified after plumbing is roughened in. Mounting heights comply with required ADA clearances.
SEE TYPICAL MOUNTING HEIGHTS FOR REQUIRED ADA CLEARANCES STEEL BRACKET PAINT BLACK 1-1/2" SLOTS STEEL BRACKET 1/8" SS TYP. 2" 2" 3 1/2" 2" 10" REMOVABLE MILLWORK PANEL SECURED TO BRACKET WITH MAGNETS. FIELD VERIFY DEPTH AFTER PLUMBING IS ROUGHED IN TO ENSURE APRON EXTENDS BELOW P-TRAP 2' - 10" AFF MAX 1' - 8" E 1
