The custom strip light bracket is fabricated from fourteen-gauge stainless steel three-hundred-four with a number two-bee finish and a two-inch width. The profile features formed bends with one-eighth-inch radii in two places and five-sixteenth-inch radii in two places. Overall dimensions include a three-inch height, a one-inch depth, a one-and-a-half-inch segment, and an eleven-sixteenth-inch return leg.

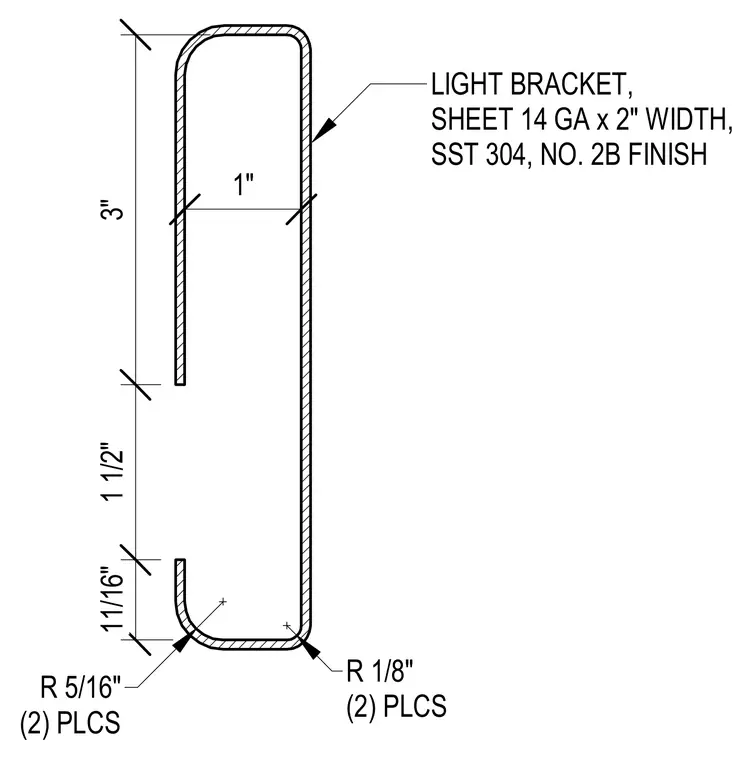

LIGHT BRACKET, SHEET 14 GA x 2" WIDTH, SST 304, NO. 2B FINISH 1" 3" 1 1/2" 11/16" R 1/8" (2) PLCS R 5/16" (2) PLCS
