Architectural · A-X3KDX

Stair Enclosure Floor Identification and Tactile Signage Details

Materials

Elements

About this detail

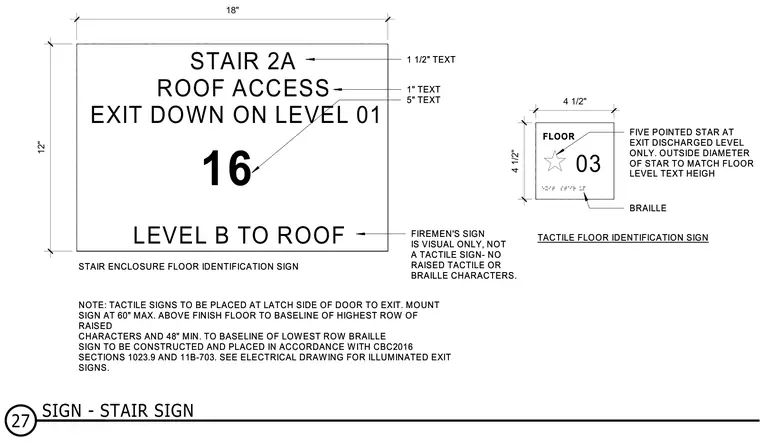

Stair enclosure signage details include an 18-inch by 12-inch main stair sign with specific text height tiers, a firemen's visual sign indicator, and a tactile floor identification sign with braille and a five-pointed star indicating the discharge level. Tactile signs are positioned at the latch side of the door to the exit, mounted between 48 inches minimum and 60 inches maximum above the finish floor to the baseline of character rows. Sign construction complies with California Building Code Sections 1023.9 and 11B-703, with illuminated exit signs coordinated on electrical drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
