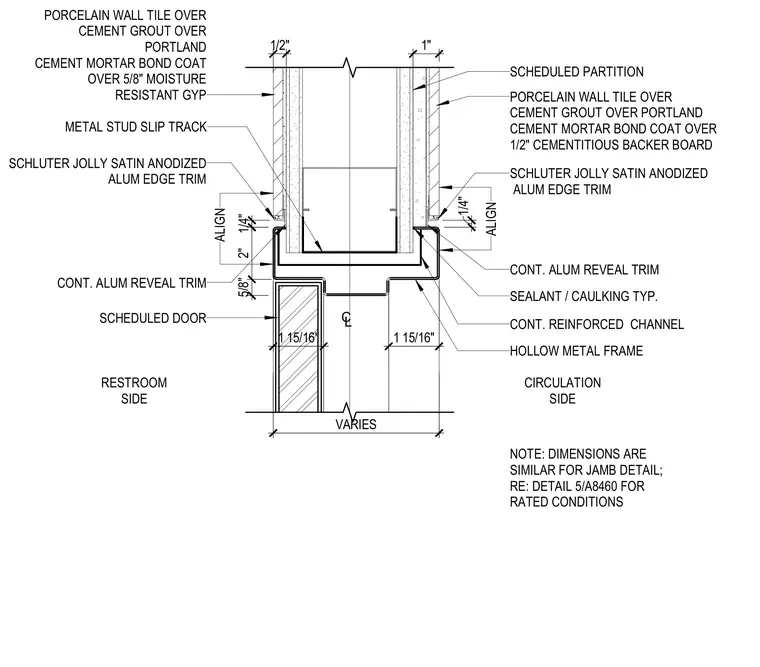

This wall head detail shows porcelain tile installed over a cement mortar bond coat and cementitious backer board on the circulation side, and over moisture-resistant gypsum board on the restroom side. The assembly frames a scheduled door beneath a metal stud partition with a slip track and continuous reinforced channel. Continuous aluminum reveal trim and Schluter-Jolly satin anodized aluminum edge trim finish the tile transitions at the hollow metal frame. Sealant is applied at the frame joints, and dimensions note a one-and-fifteen-sixteenths-inch frame offset with aligned trim.
CONT. REINFORCED CHANNEL HOLLOW METAL FRAME NOTE: DIMENSIONS ARE SIMILAR FOR JAMB DETAIL; RE: DETAIL 5/A8460 FOR RATED CONDITIONS CL 1 15/16" VARIES SCHEDULED PARTITION METAL STUD SLIP TRACK 1" 5/8" 2" PORCELAIN WALL TILE OVER CEMENT GROUT OVER PORTLAND CEMENT MORTAR BOND COAT OVER 1/2" CEMENTITIOUS BACKER BOARD SEALANT / CAULKING TYP. SCHEDULED DOOR 1 15/16" ALIGN 1/4" 1/2" CONT. ALUM REVEAL TRIM SCHLUTER JOLLY SATIN ANODIZED ALUM EDGE TRIM ALIGN 1/4" PORCELAIN WALL TILE OVER CEMENT GROUT OVER PORTLAND CEMENT MORTAR BOND COAT OVER 5/8" MOISTURE RESISTANT GYP CIRCULATION SIDE RESTROOM SIDE CONT. ALUM REVEAL TRIM SCHLUTER JOLLY SATIN ANODIZED ALUM EDGE TRIM
