A commercial pot sink drainboard is fabricated from fourteen-gauge stainless steel with a one-eighth-inch per foot slope toward the sink. The top is reinforced underneath with a one-inch by four-inch fourteen-gauge channel and supported by stainless steel gussets. The assembly stands on one-and-five-eighths-inch outside diameter sixteen-gauge legs and crossrails featuring stainless steel adjustable bullet feet. An optional sixteen-gauge stainless steel undershelf or open base is provided as specified.

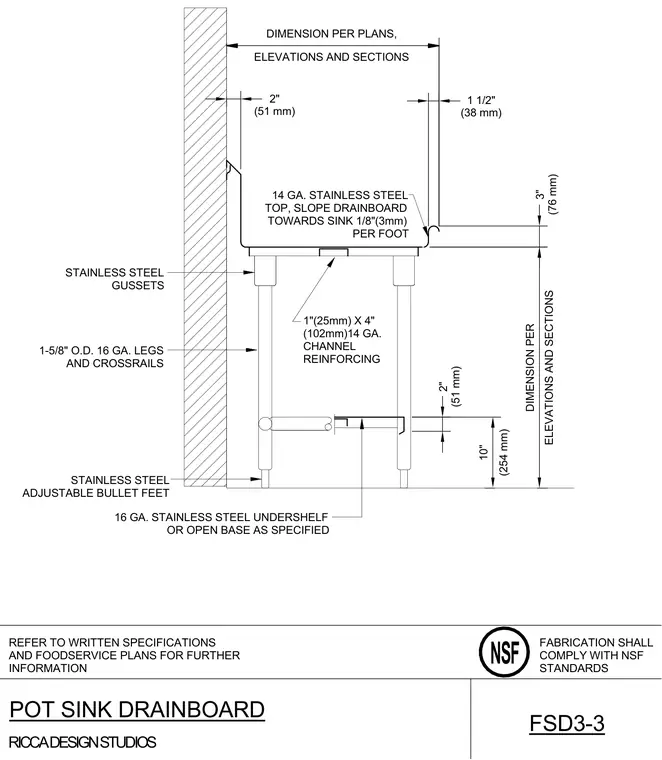

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 14 GA. STAINLESS STEEL TOP, SLOPE DRAINBOARD TOWARDS SINK 1/8"(3mm) PER FOOT 1"(25mm) X 4" (102mm)14 GA. CHANNEL REINFORCING 16 GA. STAINLESS STEEL UNDERSHELF OR OPEN BASE AS SPECIFIED STAINLESS STEEL ADJUSTABLE BULLET FEET 1-5/8" O.D. 16 GA. LEGS AND CROSSRAILS STAINLESS STEEL GUSSETS 3" (76 mm) DIMENSION PER ELEVATIONS AND SECTIONS 10" (254 mm) 2" (51 mm) 1 1/2" (38 mm) 2" (51 mm) POT SINK DRAINBOARD FSD3-3 DIMENSION PER PLANS, ELEVATIONS AND SECTIONS
