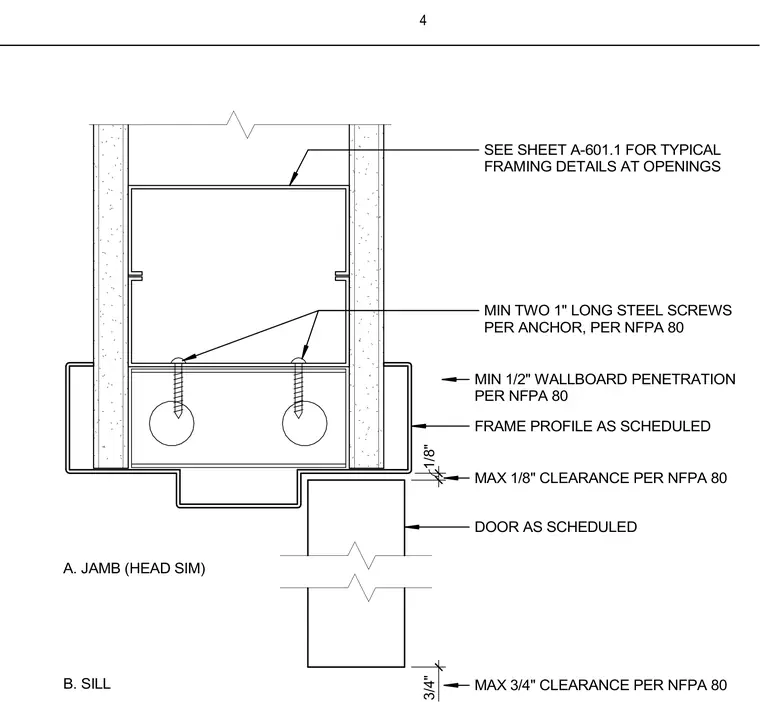

A hollow metal door frame profile is installed within a gypsum wallboard partition assembly maintaining a maximum one-eighth-inch clearance per NFPA 80. Steel anchors secure the frame with a minimum of two one-inch long steel screws per anchor. Gypsum wallboard penetrates a minimum of one-half inch per NFPA 80 requirements. The door operates with a maximum three-quarter-inch clearance at the sill per NFPA 80.
MIN TWO 1" LONG STEEL SCREWS PER ANCHOR, PER NFPA 80 A. JAMB (HEAD SIM) B. SILL SEE SHEET A-601.1 FOR TYPICAL FRAMING DETAILS AT OPENINGS FRAME PROFILE AS SCHEDULED DOOR AS SCHEDULED 1/8" 3/4" MIN 1/2" WALLBOARD PENETRATION PER NFPA 80 MAX 1/8" CLEARANCE PER NFPA 80 MAX 3/4" CLEARANCE PER NFPA 80 4
