Architectural · A-X2SYD

Accessible Parking Signage and Post Mounting Detail

Elements

Connections

About this detail

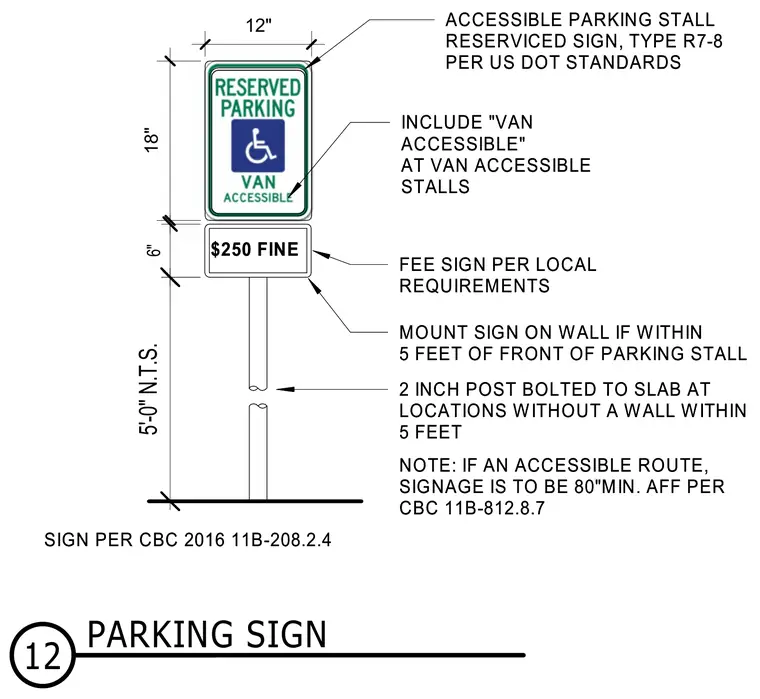

An accessible parking stall reserved sign of type R7-8 measures 12 inches wide by 18 inches high per US Department of Transportation standards, with an optional van accessible designation. A 6-inch fee sign reading $250 fine mounts directly beneath. The assembly is supported by a 2-inch post bolted to the concrete slab at locations lacking a nearby wall, or mounted directly to a wall if within 5 feet of the front of the parking stall. Signage positioned along an accessible route maintains a minimum height of 80 inches above finished floor per California Building Code requirements.
