Structural · A-X2BVS

Concrete Filled Steel Pipe Bollard with Steel Channel

Materials

Elements

Vaults / Domes Site / Paving Connections / Plates Reinforcing

About this detail

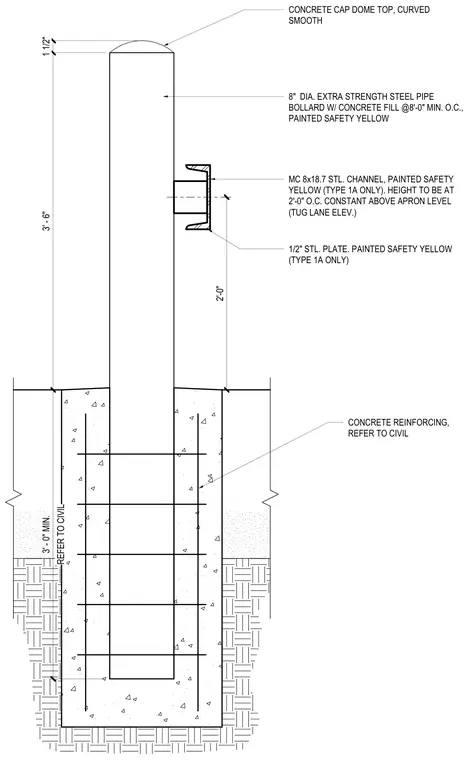

An eight-inch diameter extra strength steel pipe bollard is filled with concrete and topped with a smooth curved concrete cap. A half-inch steel plate connects an MC 8x18.7 steel channel to the bollard, painted safety yellow for Type 1A installations, positioned two feet above the apron level. The bollard is anchored in a concrete footing with reinforcing steel sized per civil drawings, extending a minimum of three feet deep.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
