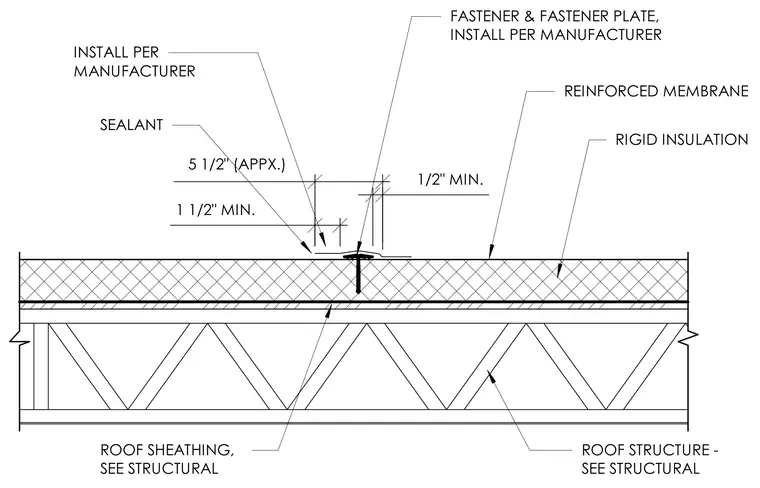

The roof structure supports a roof sheathing layer detailed per structural drawings, which is overlaid with rigid insulation. A reinforced membrane waterproofing layer is installed across the insulation surface. Fasteners and fastener plates secure the system through the insulation layer per the manufacturer specifications. Sealant is applied at the membrane joint with specified clearance dimensions.
1 1/2" MIN. 1/2" MIN. 5 1/2" (APPX.) ROOF STRUCTURE - SEE STRUCTURAL INSTALL PER MANUFACTURER SEALANT FASTENER & FASTENER PLATE, INSTALL PER MANUFACTURER REINFORCED MEMBRANE RIGID INSULATION ROOF SHEATHING, SEE STRUCTURAL
