Detectable warning pavement features cast concrete domes arranged in a pattern with center-to-center spacings between one point six and two point four inches on center in any direction. Individual domes measure between zero point nine and one point four inches in base diameter with a height of zero point two inches, having a base diameter spanning fifty to sixty percent of the total dimension. The installation uses a Bomanite company pattern cast concrete system.

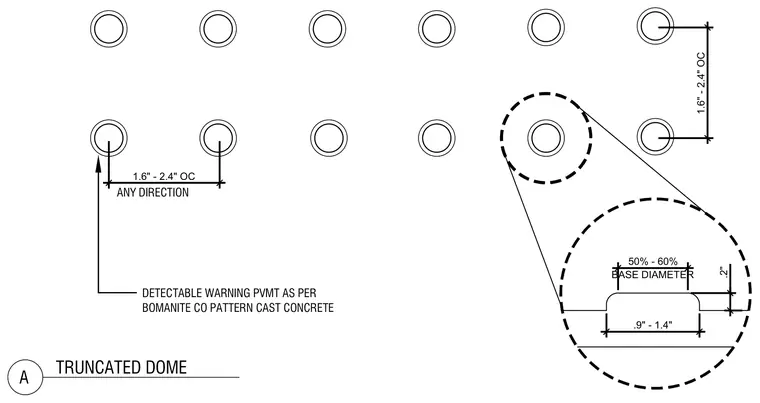

DETECTABLE WARNING PVMT AS PER BOMANITE CO PATTERN CAST CONCRETE 1.6" - 2.4" OC 1.6" - 2.4" OC 50% - 60% BASE DIAMETER .9" - 1.4" .2" ANY DIRECTION A TRUNCATED DOME
