Architectural · A-X2929

Fixed Window Head at Structural Steel Column and Stucco Wall

Materials

Steel Stainless Steel Timber / Wood Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Doors Windows Insulation Roof / Floor Openings

Connections

HSS Connection Welded Connection

About this detail

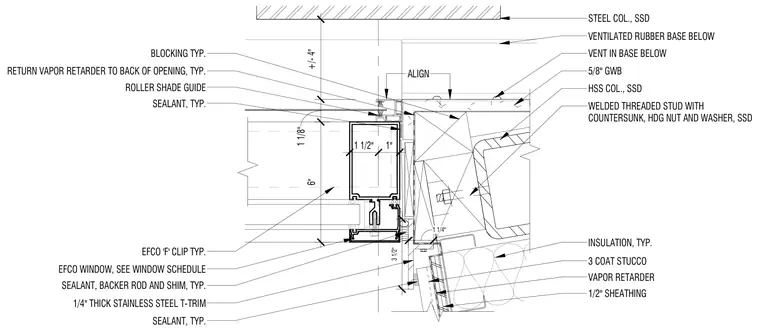

A fixed aluminum window frames against a hollow structural section and structural steel column at the head condition. Typical 'F' clips anchor the window assembly, which is sealed with perimeter sealant, backer rod, and shims, alongside a roller shade guide. Half-inch sheathing, a vapor retarder, and a three-coat stucco finish trimmed with a quarter-inch thick stainless steel T-trim comprise the exterior build-up. Five-eighths inch gypsum wallboard and a ventilated rubber base with an integrated vent form the interior condition. Welded threaded studs with countersunk, hot-dip galvanized nuts and washers secure the steel columns.
