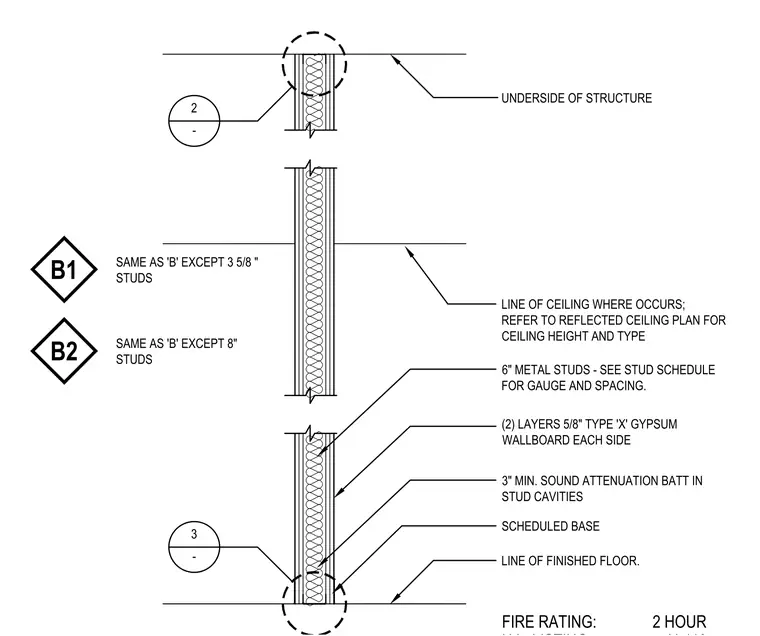

This two-hour fire-rated partition assembly consists of six-inch metal studs spaced per the stud schedule with three-inch minimum sound attenuation batts in the stud cavities. Both sides of the wall receive two layers of five-eighths-inch Type X gypsum wallboard. The assembly extends from the line of finished floor up to the underside of the structure, featuring a scheduled base and accommodating ceiling heights where applicable. Variations B1 and B2 modify the stud depth to three-and-five-eighths inches and eight inches respectively.
UNDERSIDE OF STRUCTURE LINE OF FINISHED FLOOR. 3" MIN. SOUND ATTENUATION BATT IN STUD CAVITIES FIRE RATING: 2 HOUR SCHEDULED BASE LINE OF CEILING WHERE OCCURS; REFER TO REFLECTED CEILING PLAN FOR CEILING HEIGHT AND TYPE (2) LAYERS 5/8" TYPE 'X' GYPSUM WALLBOARD EACH SIDE 6" METAL STUDS - SEE STUD SCHEDULE FOR GAUGE AND SPACING. 2 - 3 - B1 SAME AS 'B' EXCEPT 3 5/8 " STUDS B2 SAME AS 'B' EXCEPT 8" STUDS
