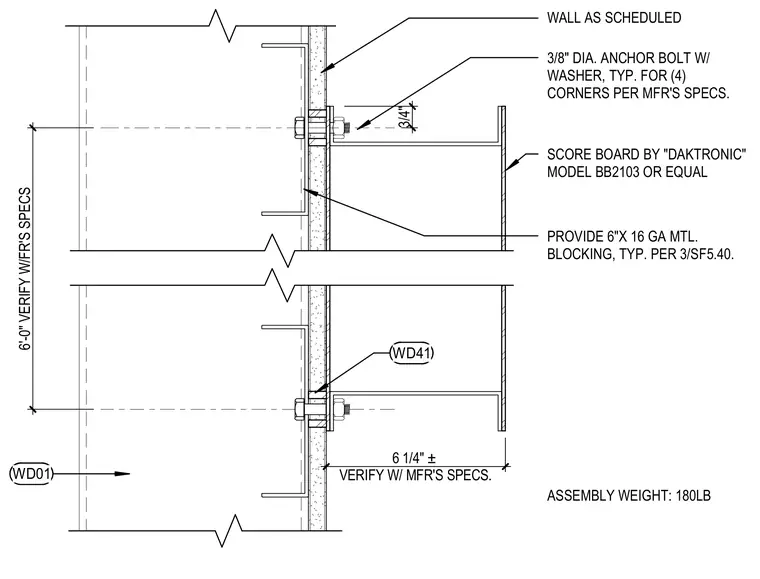

The score board unit attaches to a scheduled wall using three-eighths-inch diameter anchor bolts with washers at all four corners per manufacturer specifications. Six-inch by sixteen-gauge metal blocking provides interior support behind the wall assembly. The scoreboard model BB2103 by Daktronic or equal is verified with manufacturer specifications and features a total assembly weight of one hundred eighty pounds.
3/8" DIA. ANCHOR BOLT W/ WASHER, TYP. FOR (4) CORNERS PER MFR'S SPECS. WALL AS SCHEDULED PROVIDE 6"X 16 GA MTL. BLOCKING, TYP. PER 3/SF5.40. 6'-0" VERIFY W/FR'S SPECS 3/4" SCORE BOARD BY "DAKTRONIC" MODEL BB2103 OR EQUAL VERIFY W/ MFR'S SPECS. 6 1/4" ± WD01 WD41 ASSEMBLY WEIGHT: 180LB
