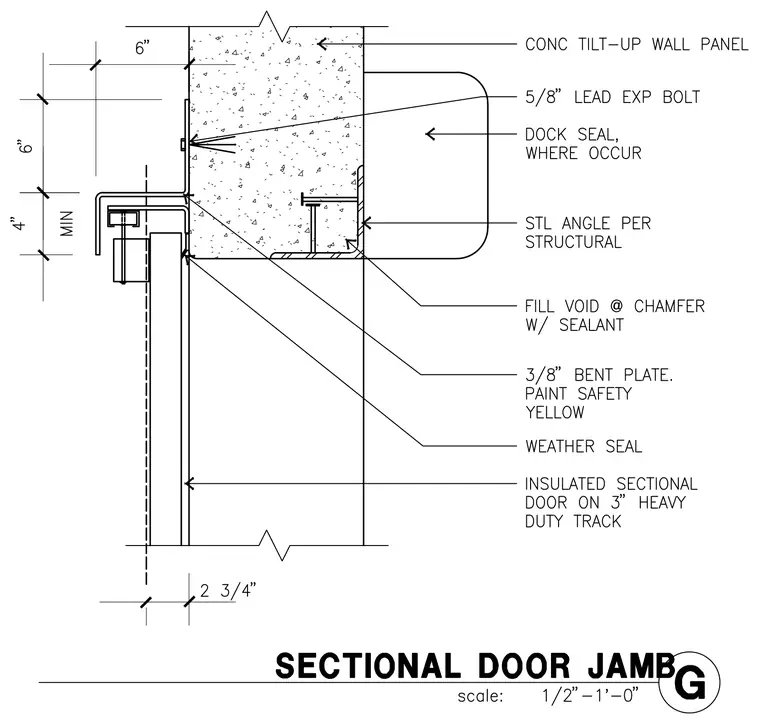

An insulated sectional door on a three-inch heavy-duty track is mounted adjacent to a concrete tilt-up wall panel. The door jamb interfaces with a steel angle sized per structural requirements and anchored with five-eighths-inch lead expansion bolts. A three-eighths-inch bent plate, painted safety yellow, is set against the wall assembly and detailed with a weather seal. A dock seal is positioned where required against the exterior face of the wall. Voids at chamfers are filled with sealant, and a weather seal is provided at the door interface.
