The installation consists of Metalworks linear synchro planks suspended by hanger wire connected to structural overhead framing. The view serves as a reference assembly for aligning linear planks along the ceiling plane. Refer to manufacturer installation instructions for detailed fastening and layout requirements.

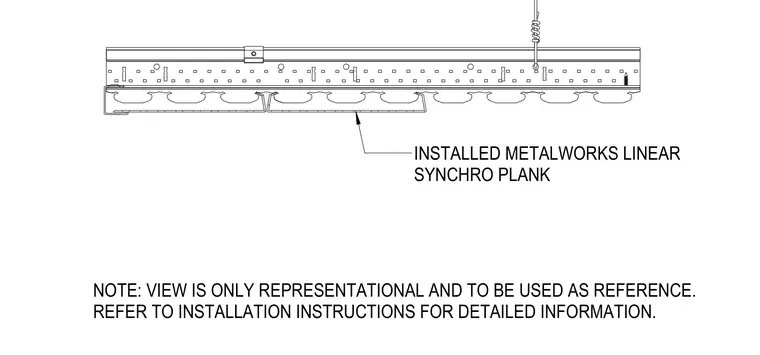

INSTALLED METALWORKS LINEAR SYNCHRO PLANK NOTE: VIEW IS ONLY REPRESENTATIONAL AND TO BE USED AS REFERENCE. REFER TO INSTALLATION INSTRUCTIONS FOR DETAILED INFORMATION.
